Magnum 4000 Troubleshooting
Use this page to work through common Magnum 4000 issues including burner problems, pressure loss, pump-related failures, fuel system issues, and water flow problems. Start with the symptom that best matches what your machine is doing.
Before You Start
Shut the unit down before inspecting components. Make sure water supply, fuel supply, and power are all verified first. A lot of “major” Magnum 4000 problems turn out to be basic setup failures, not bad parts.
Burner Issues
Use this section when the burner will not ignite, cuts out, or the machine is not producing hot water.

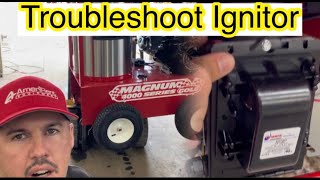

Burner Will Not Ignite
If the burner does not fire, start with the simplest failure points before assuming the burner assembly is bad.
Check these first:
- Verify there is adequate fuel in the tank.
- Inspect the ignitor and ignition leads for damage or poor connection.
- Check the fuel nozzle for blockage or wear.
- Confirm the fuel pump is delivering proper pressure.
- Inspect burner-related switches and electrical connections.
No Heat, But Machine Runs
If the unit runs and sprays but water stays cold, the problem is usually in the burner or fuel delivery side.
Likely causes:
- Failed burner ignition.
- Clogged or worn fuel nozzle.
- Low fuel pressure.
- Coil buildup reducing heat transfer.
- Burner control issue or safety interruption.
Pressure Problems
Use this section when pressure is weak, erratic, or not building like it should.
Low Pressure
Low pressure usually comes from water restriction, pump wear, valve issues, or unloader problems.
Inspect these items:
- Water supply volume and inlet restrictions.
- Nozzle size and nozzle wear.

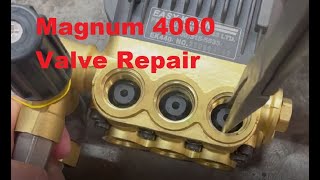

- Pump valves and seals.
- Unloader operation and adjustment.
- Leaks in hose, fittings, or plumbing.
Pressure Surges or Pulses
Surging pressure usually means unstable flow through the pump or a control issue.
Common causes:
- Air entering the water supply.
- Dirty or damaged pump valves.
- Unloader sticking or failing.
- Restriction on the inlet side.
- Inconsistent nozzle or spray tip performance.

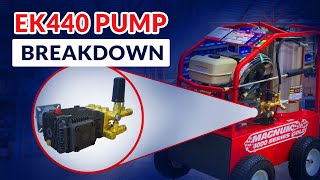

Pump Problems
Use this section when the pump is noisy, leaking, or not performing correctly.
Pump Leaking
Pump leaks usually point to worn seals, damaged fittings, or cracked components.
Check for:
- Seal wear or leakage around the pump head.
- Loose or damaged plumbing fittings.
- Cracks in the manifold or housing.
- Valve kit wear.
Pump Noise or Rough Operation
Rough pump operation often means cavitation, restricted water supply, or internal wear.
Look at these areas:
- Water supply volume and inlet condition.
- Air leaks on the intake side.
- Pump valves and internal wear components.
- Belt condition and alignment if belt-driven.
Fuel System
Use this section when the burner struggles, fuel delivery seems weak, or heat is inconsistent.
Low or Inconsistent Fuel Pressure
Fuel pressure problems can prevent ignition or cause weak burner performance.
Inspect these areas:
- Fuel pump performance and pressure output.
- Fuel filter restriction.
- Fuel line blockage or air intrusion.
- Nozzle contamination.
- Condition of the fuel itself.
Water Flow
Use this section when the machine has poor flow, inconsistent supply, or acts differently under no-water conditions.
Poor Water Flow
If flow is weak, do not start by replacing major components. Rule out supply and restriction first.
Check these items:
- Incoming water supply volume.
- Inlet screen and filters.
- Kinks or restrictions in feed hose.
- Blockage at nozzle or plumbing connections.
- Unloader or valve-related restriction.
Maintenance Checks
Many Magnum 4000 issues are maintenance failures dressed up like part failures.
Basic Service Checklist
Before replacing parts, confirm the machine is current on routine service.
Review this checklist:
- Inspect and clean the coil if scale or buildup is present.
- Check burner nozzle condition.
- Inspect ignition components.
- Look over pump valves, seals, and fittings.
- Confirm filters and water inlet points are clean.
Still Not Sure What’s Wrong?
If multiple symptoms overlap, stop guessing. Identify the primary failure first: no heat, low pressure, poor flow, leak, or ignition failure.
Best next step:
- Match the machine to one dominant symptom.
- Use the related video resources for that symptom.
- Contact support if the issue is still unresolved.
